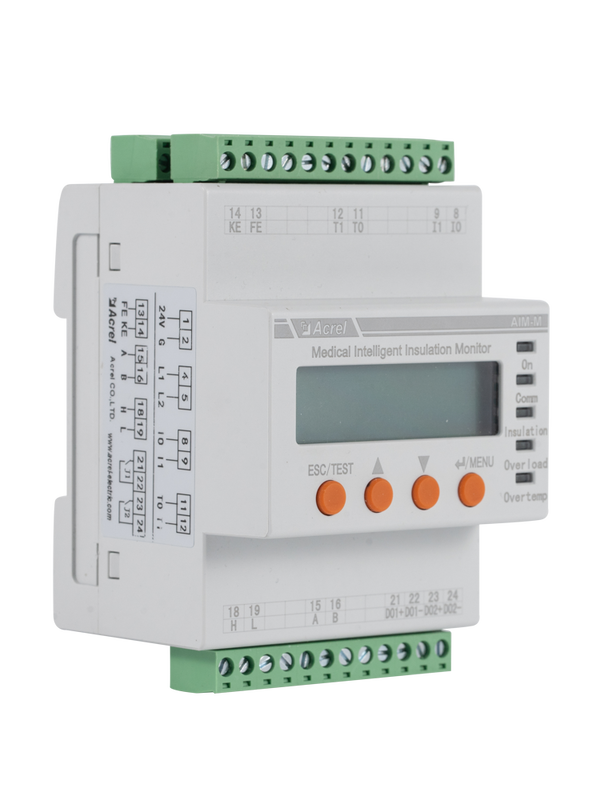

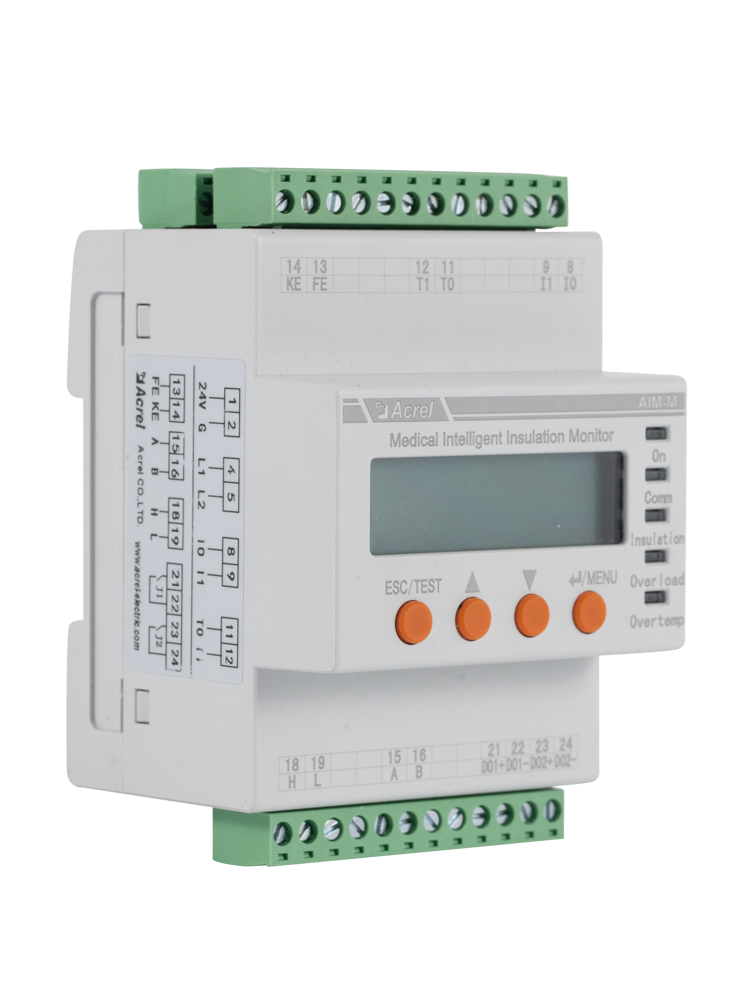

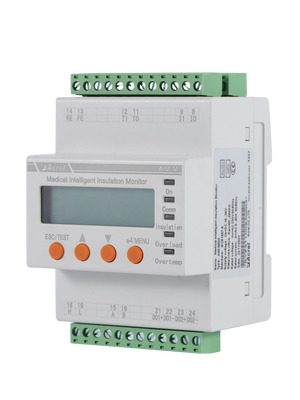

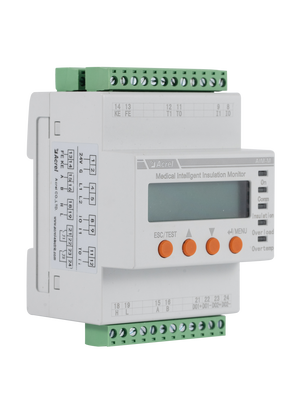

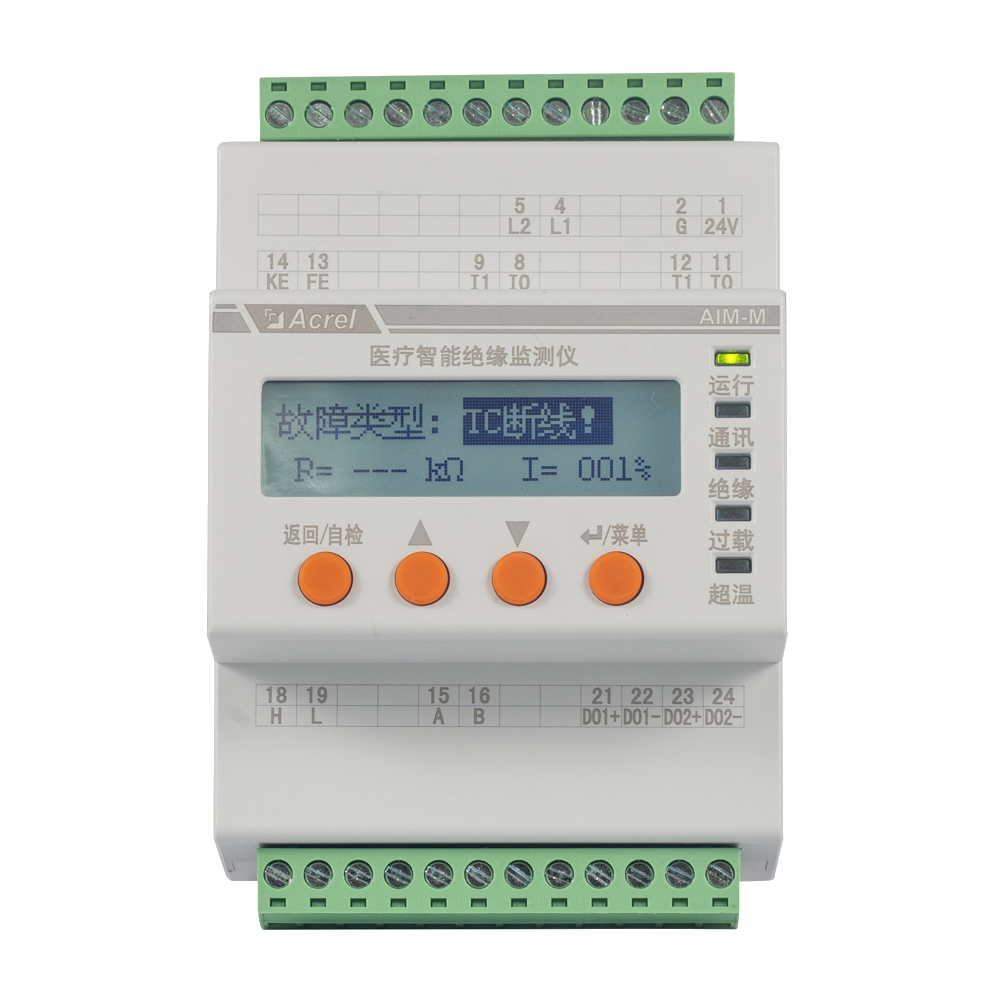

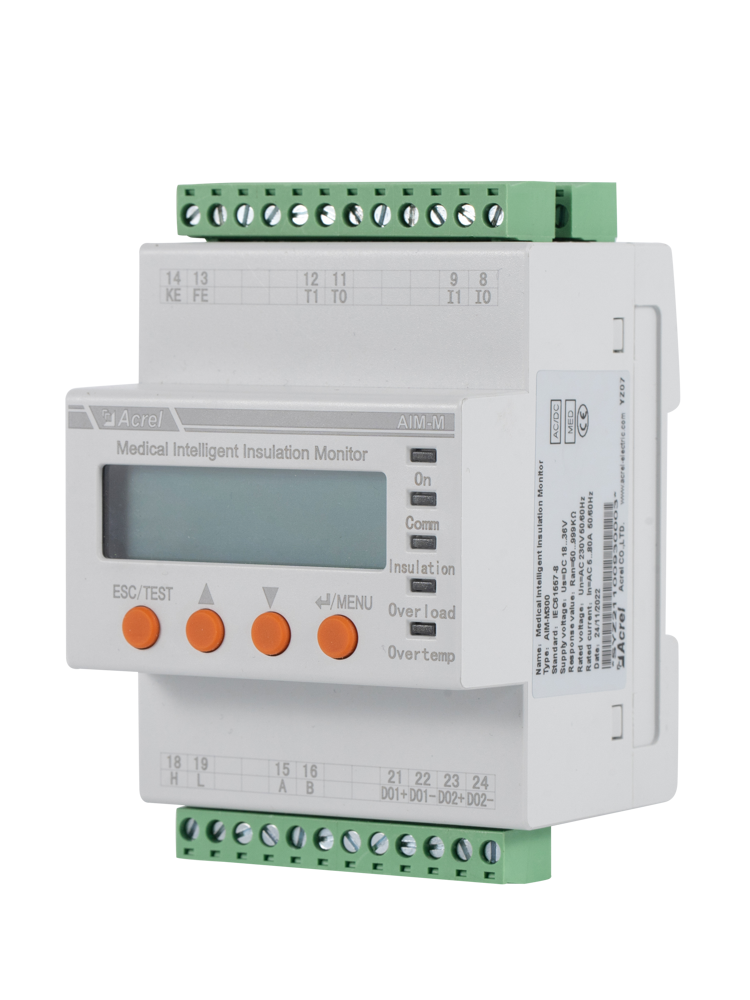

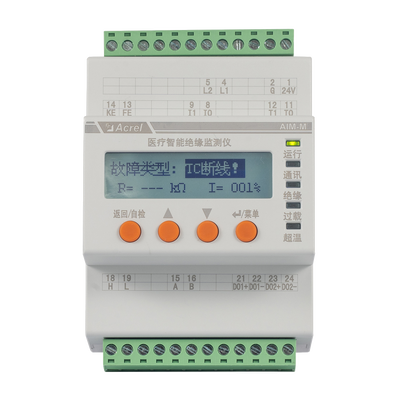

Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room
Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room
지금 연락

Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room

최소 주문 수량 : 1 가격 : 1714 USD/unit
포장 세부 사항 : 판지 포장 33*24*18cm 배달 시간 : 근무일 기준 7일
지불 조건 : 티/티 공급 능력 : 일 당 100 PC
원래 장소: 장쑤성 브랜드 이름: Acrel
인증: CE/ IEC/ DIN EN 61577-8 모델 번호: AIM-M300

상세 정보
LED 표시기: 켜짐, 절연, 과부하, 과열 애플리케이션: 의료 IT 시스템의 절연 모니터링
의사소통: RS485(MODBUS-RTU) + CAN

제품 설명

The AIM-M300 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M300 is designed to support insulation fault location.AIM-M300 series medical intelligent monitoring device adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is suitable for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.

Basic Specification:

   Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 0

Dimension:

                                                      Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 1

Diagram:

   Acrel Medical IT AIM-M300 Medical Intelligent Insulation Monitor ICU/CCU/Operating room 2Function:

1. Functions of real-time monitoring and fault alarming of the grounding insulation resistance,transformer load current and transformer winding temperature of the monitored IT system;
2. Locating current injector for insulation fault location systems;
3. Real-time monitor the line disconnection fault, current sensor disconnectiobn,temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2s after the fault occurs. when the fault occurs;
4. Relay alarm output, LED alarm indication and other faults indication functions;
5. Two kinds of fieldbus communication technology, which are used for centralized alarm and display device, insulation fault locator and upper computer management software communications, and monitoring the operation status of IT system in real time.
6. Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.
